Electric Screw Compressors

BOGE C Series Screw Compressor

The space saving C-series screw compressors are designed for long-term performance. Even at full load operation the compressor operates reliably and safely at optimum efficiency providing a long service life.

In conjunction with the frequency controlled option this series provide an extremely flexible system which spontaneously adapts to any changes in the customers compressed air or pressure demands. In the event of a change of the pressure value, the output quantity is synchronised automatically. A 13 bar machine is thus transformed into an 8 bar machine yielding a correspondingly higher output - without any expensive remodelling or design related modifications.

The belt driven C-series models up to 22 kW are highly efficient and extremely quiet in operation requiring only a minimum footprint.

The footprint is even kept to a minimum with the C D-series which includes an integrated refrigerant dryer. An integrated design means short distances and extremely low pressure losses.

* models with "F" designation indicates the frequency controlled version

REFRIGERANT DRYER

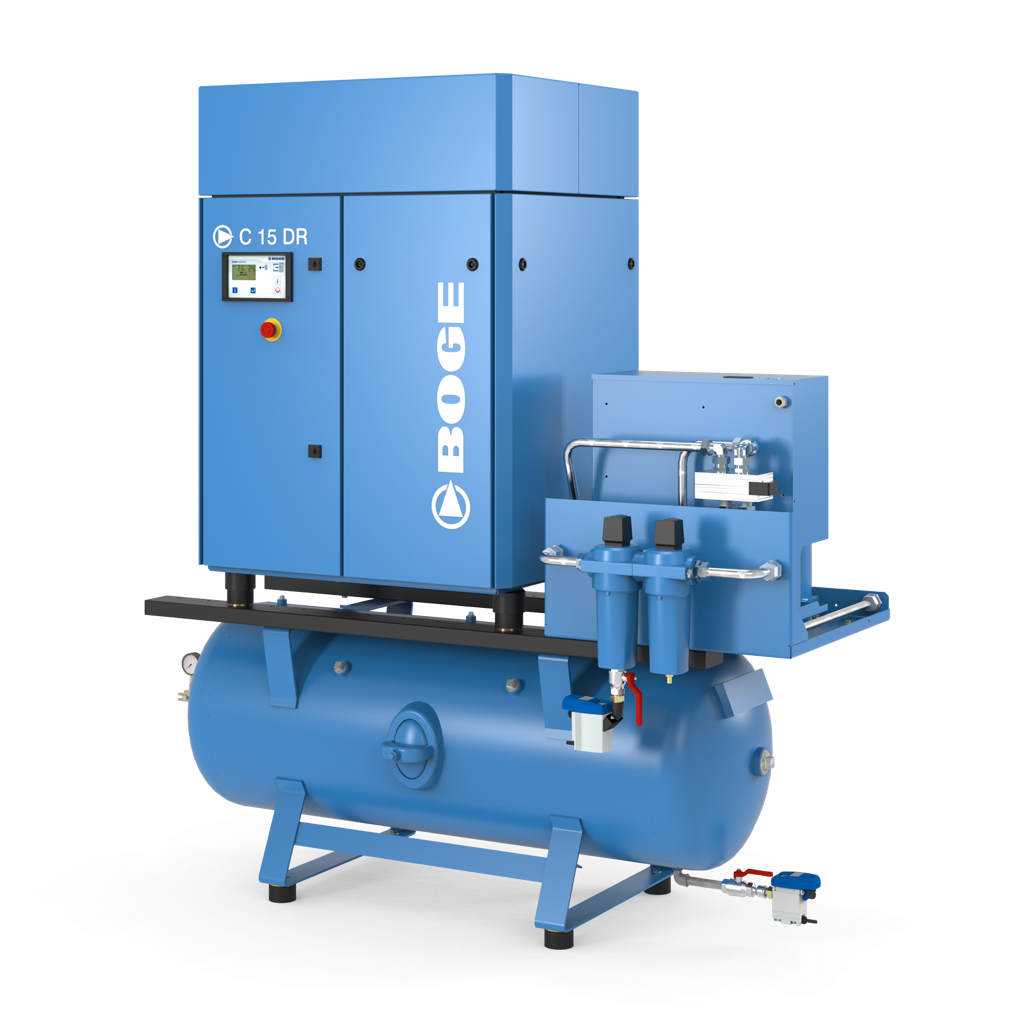

As an option the compressor can be supplied with a horizontal refrigerant dryer without expanding the screw compressor footprint.

CONTROL

BASIC control is the standard compressor controller with LC display and pressure sensor technology. The FOCUS control, offering additional monitoring and control options, is available as an optional extra.

FREQUENCY CONTROL

The frequency converter flexbility controls the motor speed and therefore the airend ensuring the compressor output adjusts to the momentary demand.

EXTREMELY QUIET

All C-series compressors are characterised by very low sound pressure levels due to their super-silenced cabinents.

Series Specifications

BOGE
Model
Max. Pressure
bar
Free Air Delivery
cfm
Motor Power
HP
Dimensions
W x D x H mm
Weight
kg
C9 8 42 10 480 x 1000 x 1240 215
C15 8 61 15 772 x 1056 x 1735 410
C15F * 8 13.70 to 61 15 772 x 1056 x 1735 424
C16 8 66 15 772 x 1056 x 1735 432
C16F * 8 19 to 70 15 772 x 1056 x 1735 499
C20 8 90 20 772 x 1056 x 1735 438
C20F * 8 23 to 90 20 772 x 1056 x 1735 448
C25 8 109 25 772 x 1056 x 1735 499
C25F * 8 27 to 109 25 772 x 1056 x 1735 509
C30 8 127 30 772 x 1056 x 1735 461
C30F 8 30 to 127 30 772 x 1056 x 1735 471
F requency controlled
BOGE
Model
Max. Pressure
bar
Free Air Delivery
cfm
Motor Power
HP
Dimensions
W x D x H mm
Weight
kg
C9D 8 42 10 480 x 1000 x 1240 235
C15D 8 61 15 1072 x 1056 x 1735 510
C15FD * 8 13.7 to 61 15 1072 x 1056 x 1735 524
C16D 8 66 15 1072 x 1056 x 1735 532
C16FD * 8 19 to 70 15 1072 x 1056 x 1735 599
C20D 8 90 20 1072 x 1056 x 1735 538
C20FD * 8 23 to 90 20 1072 x 1056 x 1735 548
C25D 8 109 25 1072 x 1056 x 1735 599
C25FD * 8 27 to 109 25 1072 x 1056 x 1735 609
C30D 8 127 30 1072 x 1056 x 1735 561
C30FD 8 32 to 127 30 1072 x 1056 x 1735 571
F requency controlled D ryer (refrigerated)
