Electric Screw Compressors

BOGE CL Series Screw Compressors

The space saving CL direct drive screw compressors are designed for long-term performance. A refrigerant dryer mounted on a horizontal receiver is available as an option. Even at full load operation the compressor operates reliably and safely at optimum efficiency providing a long service life.

* models with "S" designation indicates the silenced cabinet version

EXTREMELY QUIET

Because of the sound absorbing graphite casting the C-series is very quiet in operation and vibration free. No further silencing is required. The canopy versions of the C-series and C-series with dryers are therefore super-silent with low sound pressure values.

HIGHEST EFFICIENCY

The BOGE airend design ensures industry leading specific power ratios (optimised output volumes at low energy consumption).

COMPACT DESIGN

Integration of all essential components eliminates almost all interconnecting pipes. Leakages are virtually eliminated. Internal pressure losses are minimised.

OPTIONAL REFRIGERATION DRYER

The C-series can be equiped with a refrigeration dryer as an option - either top mounted on a compressed air receiver or horizontally mounted. No additional space is required.

MODULAR DESIGN

Because of the modular design BOGE screw compressors allow for individual configuration of your compressed air system. Each compact module is pre-assembled and ready for use for efficient and reliable operation in all types of applications.

Series Specifications

BOGE
Model
Max. Pressure
bar
Receiver Volume
Litres
Free Air Delivery
cfm
Motor Power
HP
Dimensions
W x D x H mm
Weight
kg
C5LDR 10 350 19 5.5 1700 x 590 x 1130 245
C7LDR 10 350 25 7.5 1770 x 590 x 1130 250
C10LDR 10 350 37 10 1815 x 620 x 1282 400
C15LDRS * 10 350 60 15 2040 x 835 x 1500 590
C20LDRS * 10 350 79 20 2040 x 835 x 1500 590
L inked or Direct Drive D ryer (refrigerated) R eceiver Tank S ilencing Hood
BOGE
Model
Max. Pressure
bar
Receiver Volume
Litres
Free Air Delivery
cfm
Motor Power
HP
Dimensions
W x D x H mm
Weight
kg
C5LR 10 90 19 5.5 1130 x 490 x 920 175

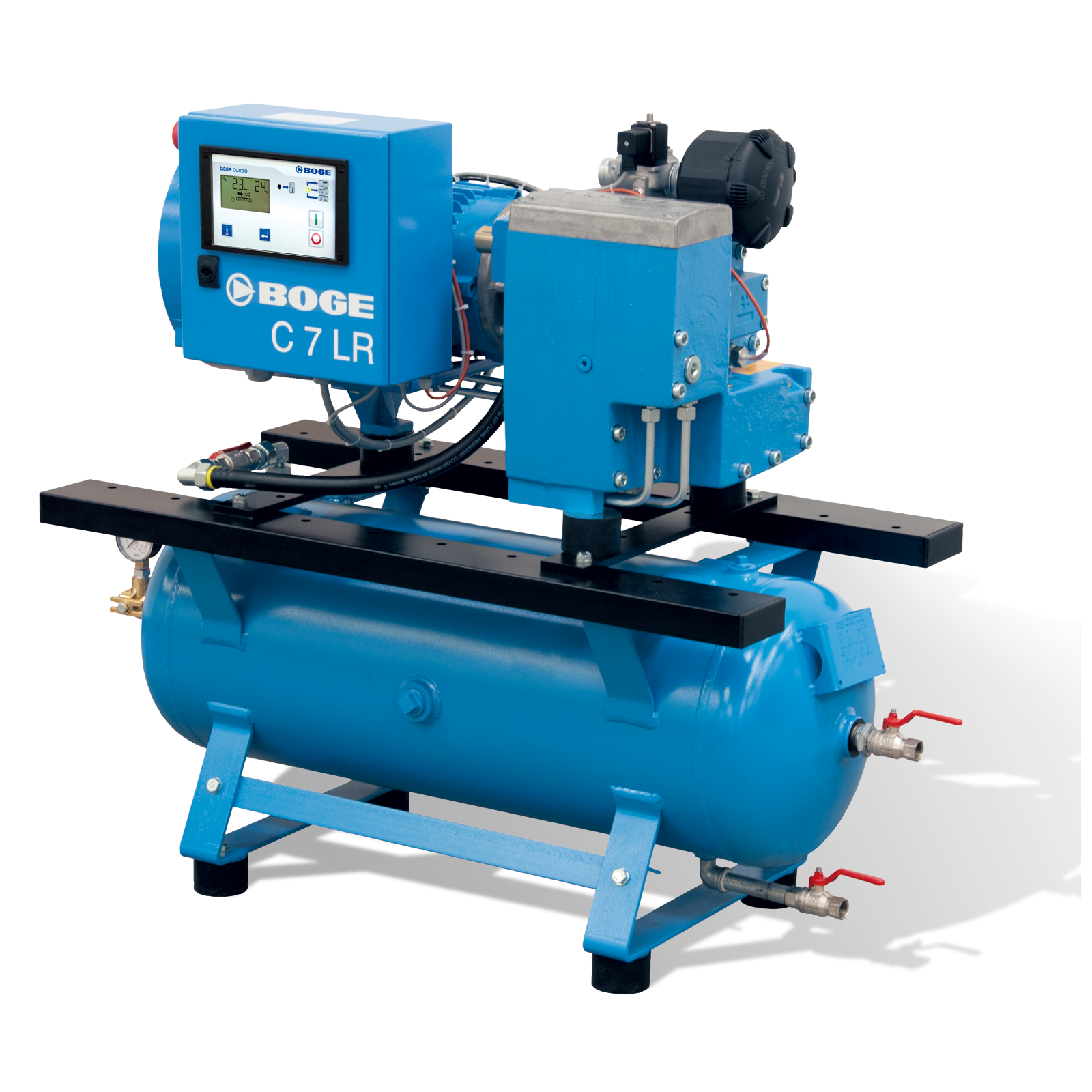

C7LR 10 270 25 7.5 1130 x 490 x 920 180
C10LR 10 350 37 10 1729 x 620 x 1299 370
C15LRS * 10 350 60 15 1820 x 704 x 1495 555
C20LRS * 10 350 79 20 1820 x 704 x 1495 575
L inked or Direct Drive R eceiver Tank S ilencing Hood
BOGE
Model
Max. Pressure
bar
Free Air Delivery
cfm
Motor Power
HP
Dimensions
W x D x H mm
Weight
kg
C5L 10 19 5.5 755 x 485 x 495 125
C7L 10 25 7.5 755 x 485 x 495 130

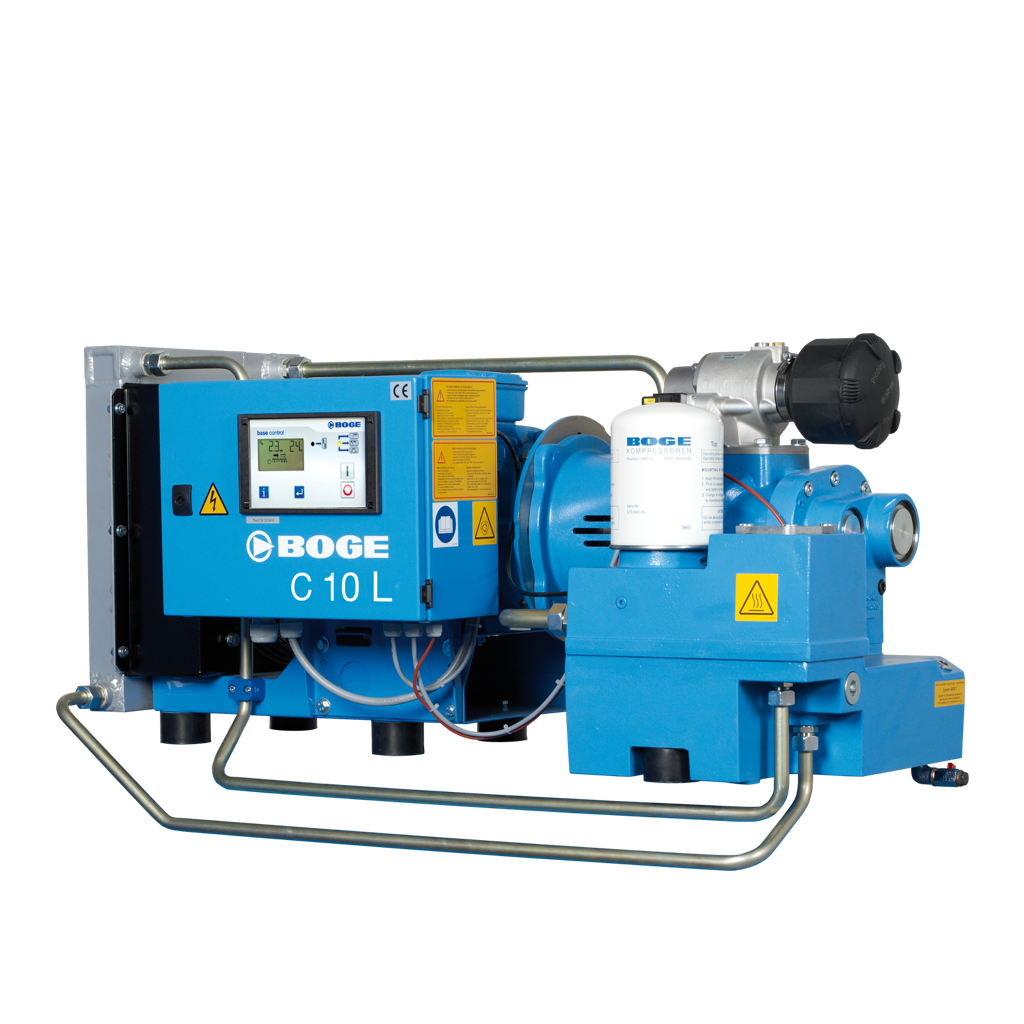

C10L 10 37 7.5 1171 x 599 x 595 260
C15L 10 60 15 1333 x 599 x 606 290
C15LS * 10 60 15 1500 x 784 x 800 425
C20L 10 79 20 1333 x 599 x 606 300
C20LS * 10 79 20 1500 x 784 x 800 435
L inked or Direct Drive S ilencing Hood
