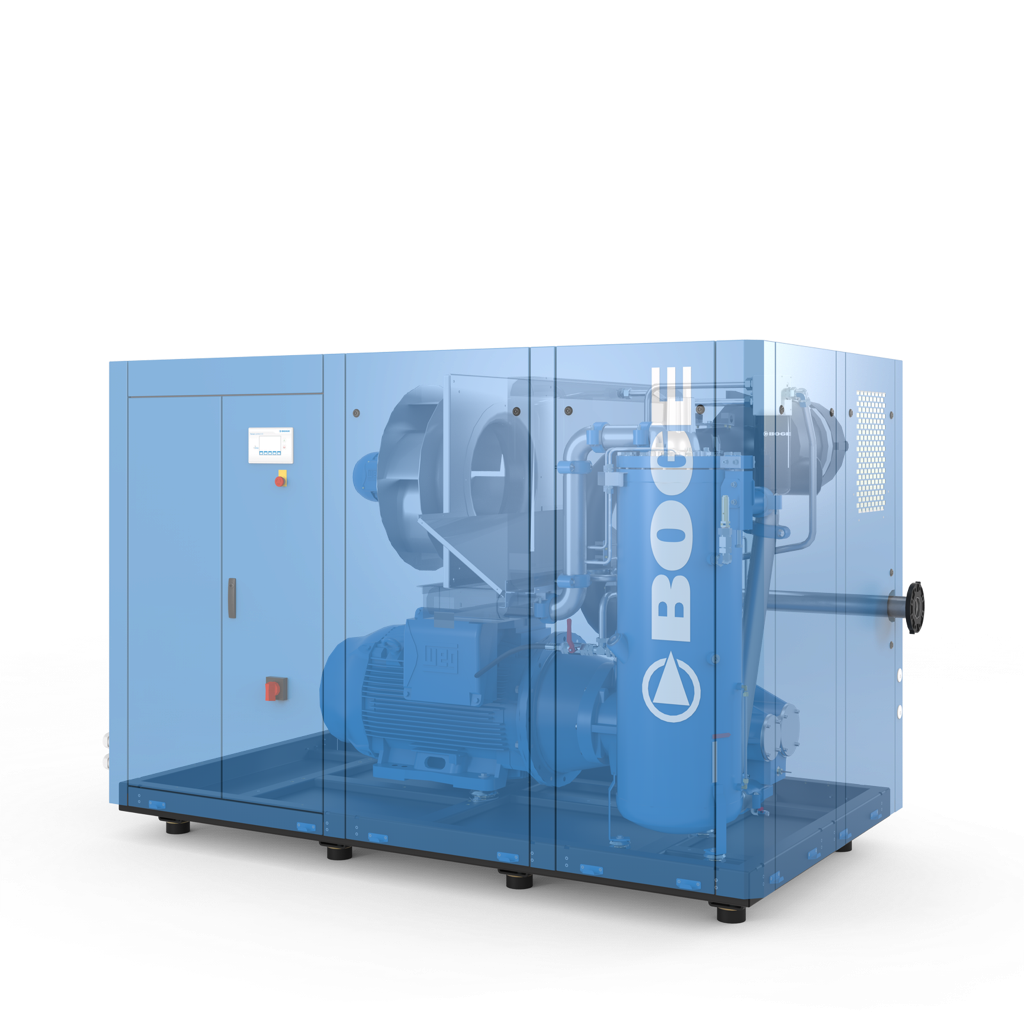

BOGE S Series Screw Compressor

The S series has set standards in efficient and reliable compressed air production. BOGE has improved one of the best screw compressor ranges on the market even further.

While maintaining the proven design philosophy, a significant optimisation was achieved in terms of efficiency, smooth running properties and sound pressure level.

COOLER SECTION

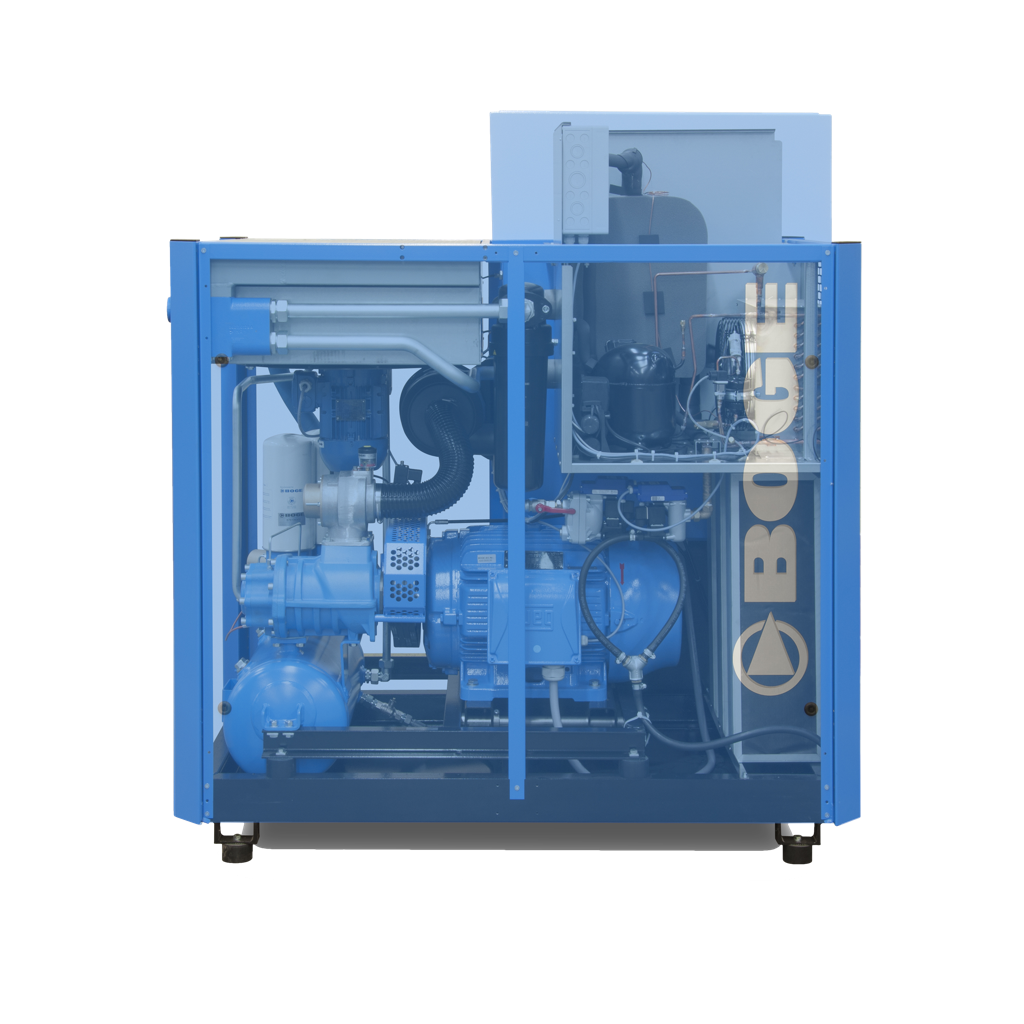

The self-sufficient section, where the highest cooling air temperatures occur, is located at the top of the compressor in the cooling air discharge and houses a generously dimensioned aftercooler with separate cooling air fan and cooling air guiding hood.

The award winning Boge S-Series design incorporates a clever cabinet layout with a high quality finish and maximum efficiency. Every component part incorporates the decade long know-how of Boge's engineers - advantages paid back through reliable daily operation.

* models with "F" designation indicates the frequency controlled version

EASY MAINTENANCE

All maintenance parts are easily accessible from one side of the compressor. This reduces costs to a minimum.

INTERNAL PIPEWORK

All oil carrying pipes are made of steel terminating with high quality precision threaded joints that are leak proof and safe even under the hightest pressures. The entire machine utilises only one hose on the clean air side which also serves for vibration damping.

SAFETY OIL SEPARATION SYSTEM

Includes horizontal oil separation reservoir, directly mounted airend and external oil separator cartridge. This innovative system ensures oil separation with virtually no pressure losses and a residual oil content of only 1-3mg/m³ in every operating phase. The external oil separator cartridge is minimally loaded: a guarantee for long service life.

INTEGRATED SWITCH CABINET

The switch cabinet is integrated into the screw compressor housing. It is fully pre-wired and ready for use. The cabinet also houses a quick fit modular compressor controller.

Series Specifications

BOGE
Model
Max. Pressure
bar
Free Air Delivery
cfm
Motor Power
HP
Dimensions
W x D x H mm
Weight
kg
S40-3 8 187 40 1615 x 965 x 1448 842
S50-3 8 229 50 1615 x 965 x 1944 873
S61-3 8 275 60 1995 x 1065 x 1949 1230
S75-3 8 343 75 1995 x 1065 x 1949 1310
S90-3 8 397 90 1995 x 1065 x 1949 1378
S100-3 8 452 100 1995 x 1065 x 1949 1408
S221-3 8 985 220 2265 x 1585 x 2505 3200
S271-3 8 1225 270 3145 x 1910 x 2645 4700
S341-3 8 1437 340 3100 x 1910 x 2645 5000
F requency controlled
BOGE
Model
Max. Pressure
bar
Free Air Delivery
cfm
Motor Power
HP
Dimensions
W x D x H mm
Weight
kg
SD40-3 8 187 40 1615 x 965 x 1730 970
SD50-3 8 229 50 1615 x 965 x 1947 1001
SD61-3 8 275 60 1995 x 1065 x 1949 1380
SD75-3 8 343 75 1995 x 1065 x 1949 1480
SD90-3 8 397 90 1995 x 1065 x 1949 1548
SD100-3 8 452 100 1995 x 1065 x 1949 1578

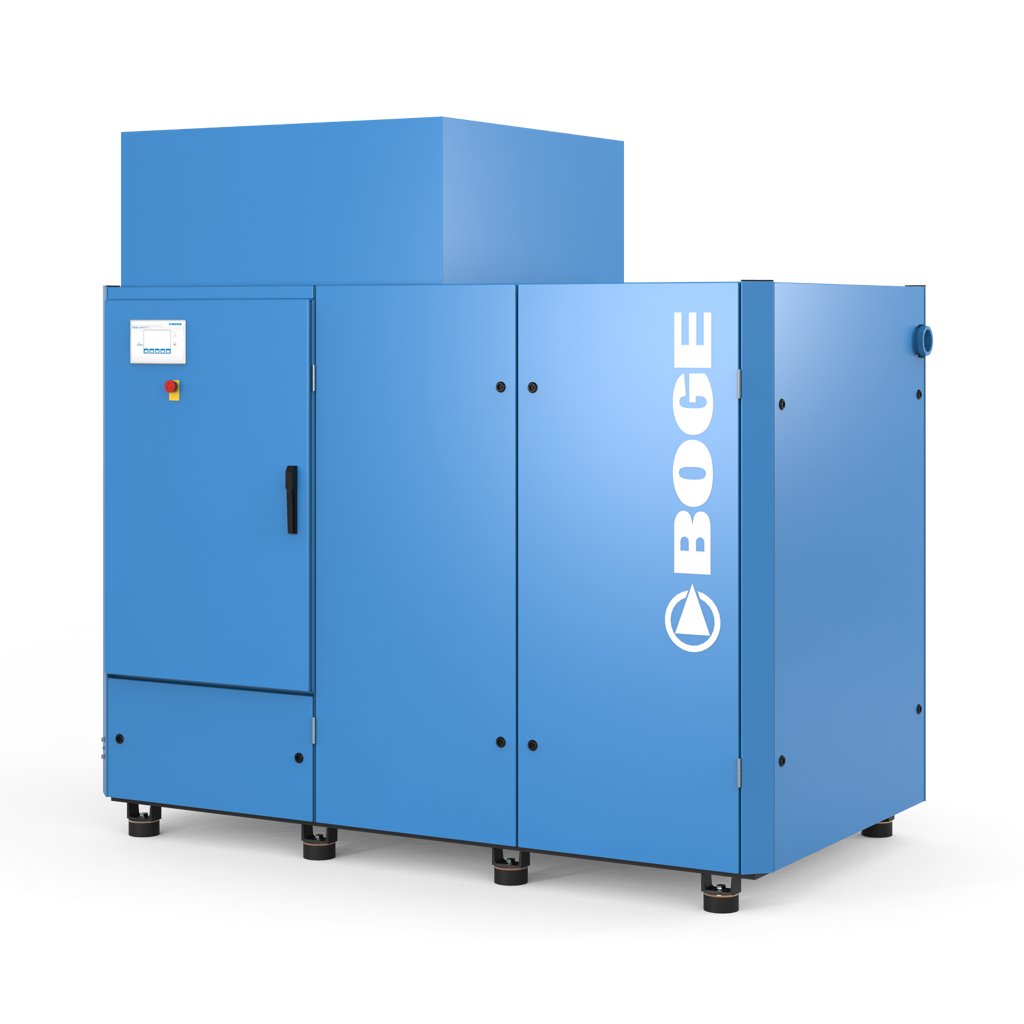

SDF100-3 * 8 103 to 452 100 2043 x 1065 x 1949 1588
SD101-3 8 493 100 2366 x 1315 x 2257 2273
SD125-3 8 554 125 2366 x 1315 x 2257 2293
SD150-3 8 650 150 2366 x 1315 x 2257 2358
SDF150-3 * 8 164 to 651 150 2414 x 1315 x 2257 2462
F requency controlled D ryer (refrigerated)
