Diesel Screw Compressors

FS Curtis Box Type Diesel Screw Compressors

The FAC Series from FS-Curtis comprises a range of heavy duty, portable diesel air compressors offering superior efficiency, quality and reliability in an environmentally responsible manner. Each model's fuel consumption and noise emission levels are amongst the best in class. There is a wide selection of 34 models including box and trailer type configurations, continuous duty outputs from 1.2 to 36 m3/min (55 to 1,300 cfm), and working pressures from 7 to 24 bar (100 to 350 psi).

A factory installed aftercooler option is available for most of the 7 bar compressors.

All models are based on well proven designs that are market leaders in their home territory of Japan and widely distributed throughout the rest of the world. Thousands of these units are already working under the most demanding conditions in construction, mining and industrial applications. With a comprehensive array of standard features, the FAC Series compressors represent outstanding value for money in capital investment terms. And their high levels of fuel efficiency and reliability deliver whole-of-life operating costs that are amongst the lowest available.

Series Specifications

FS Curtis
Model
Free Air Del.
L/min | cfm
Rated Pressure
psi | bar
Max. Pressure
psi | bar
Aftercooler Engine Fuel Consumption
L/h @ 100% Load
Noise Level
dB(A) @ 7m
Weight
kg

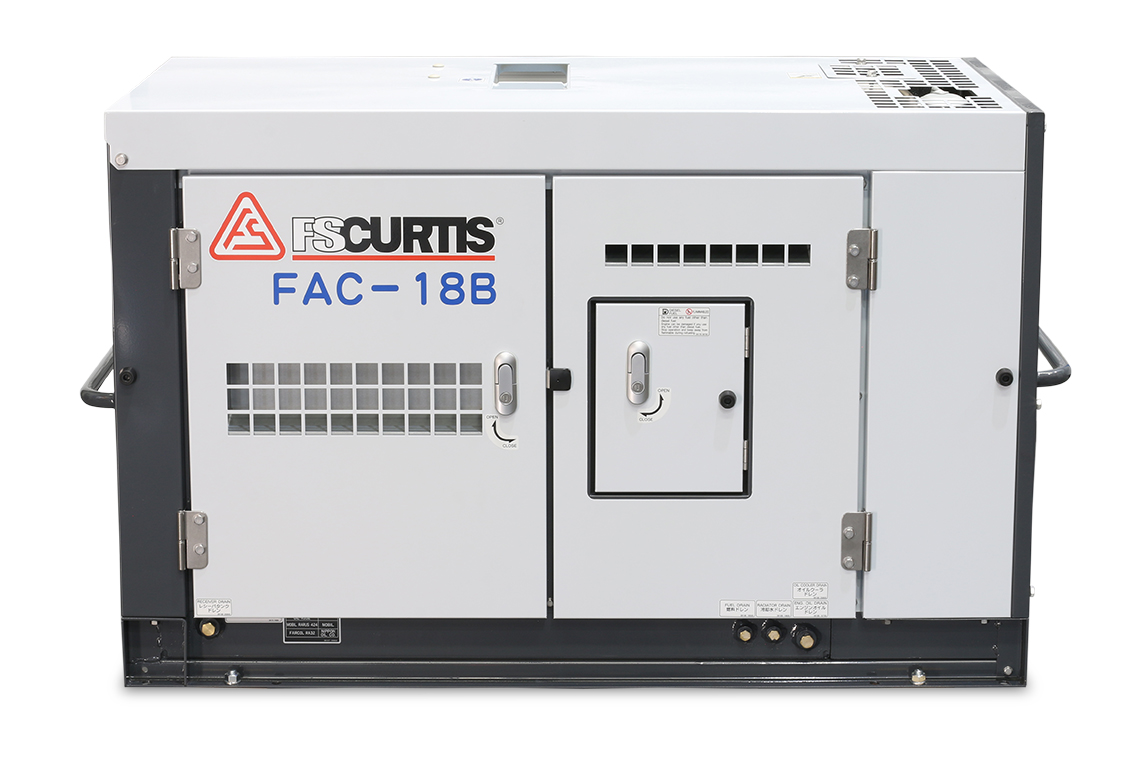

FAC-18B 1,840 | 65 102 | 7 133 | 9.2 option available Kubota D722-K3A 3.9 67 345

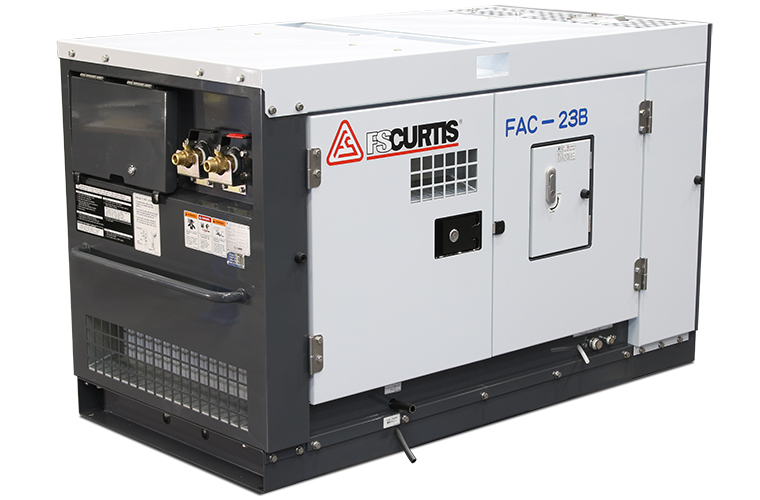

FAC-23B 2,300 | 80 102 | 7 135 | 9.3 option available Kubota D902-K3A 5.1 66 435
FAC-28B 2,800 | 100 102 | 7 130 | 9 option available Kubota D1105-K3B 6.3 66 500
FAC-37B 3,700 | 130 100 | 6.9 130 | 9 option available Yanmar 3TNV88-BDHK 7.5 66 720

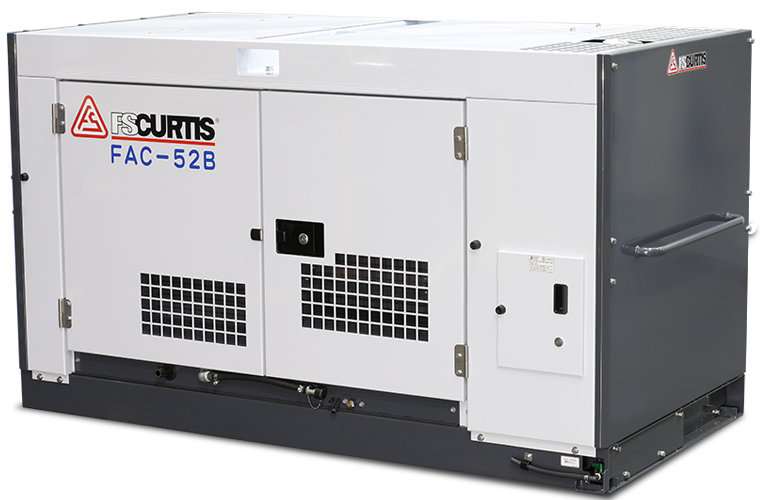

FAC-52B 5,200 | 185 102 | 7 130 | 9 option available Yanmar 4TNV88-BXDHKSR1 9 68 855

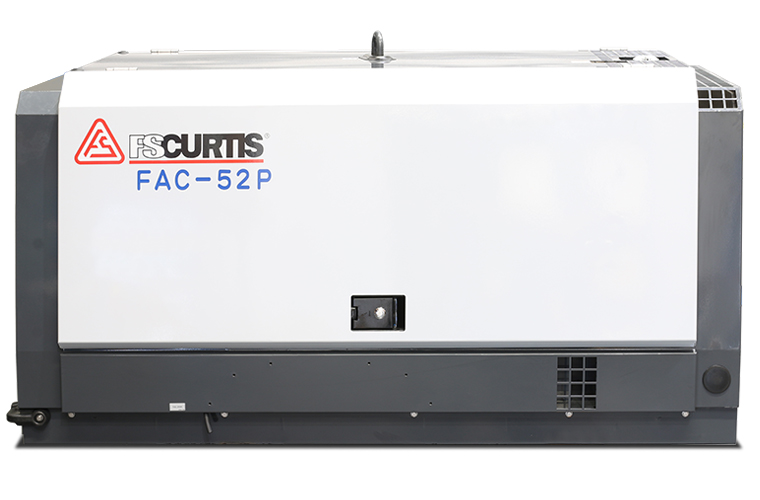

FAC-52P WW 5,200 | 185 100 | 6.9 130 | 9 option available Yanmar 4TNV88-BXDHKS 9.5 69 870

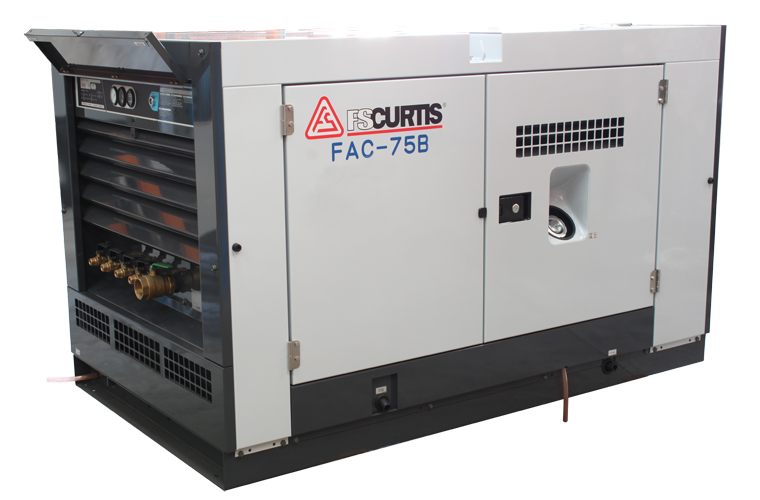

FAC-75B 7500 | 265 100 | 6.9 130 | 9 option available Yanmar 4TNV98T-NHK 15 69 1290
FAC-113P WW 11,300 | 400 102 | 7 130 | 9 option available Isuzu DD-4BG1T 19.7 71 1,850
