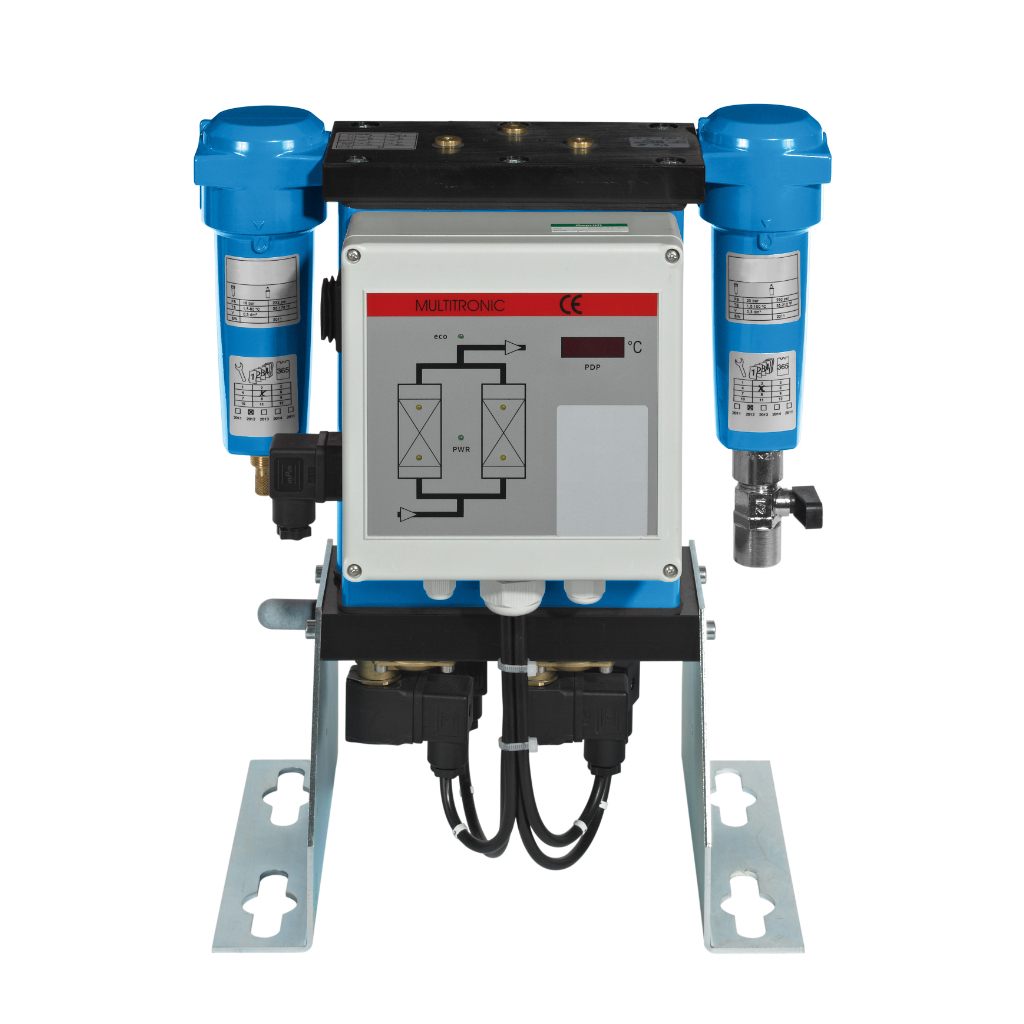

The microprocessor control enables energy efficient control of the adsorption dryer. An optional dew point control is available that adapts the way the system operates and in doing so reduces operating costs.
A functional display at the front of the control cabinet permanently indicates operational status. The ten-minute cycle can save up to six percent of energy. The compressor synchronising control can also offer further energy savings potential.
The entire range of adsorption compressed air dryers from BOGE are equipped with both pre and after filter as standard. Even before drying, all solids and aerosols up to 0,01 μm are removed from the compressed air supply – assuring best possible quality.

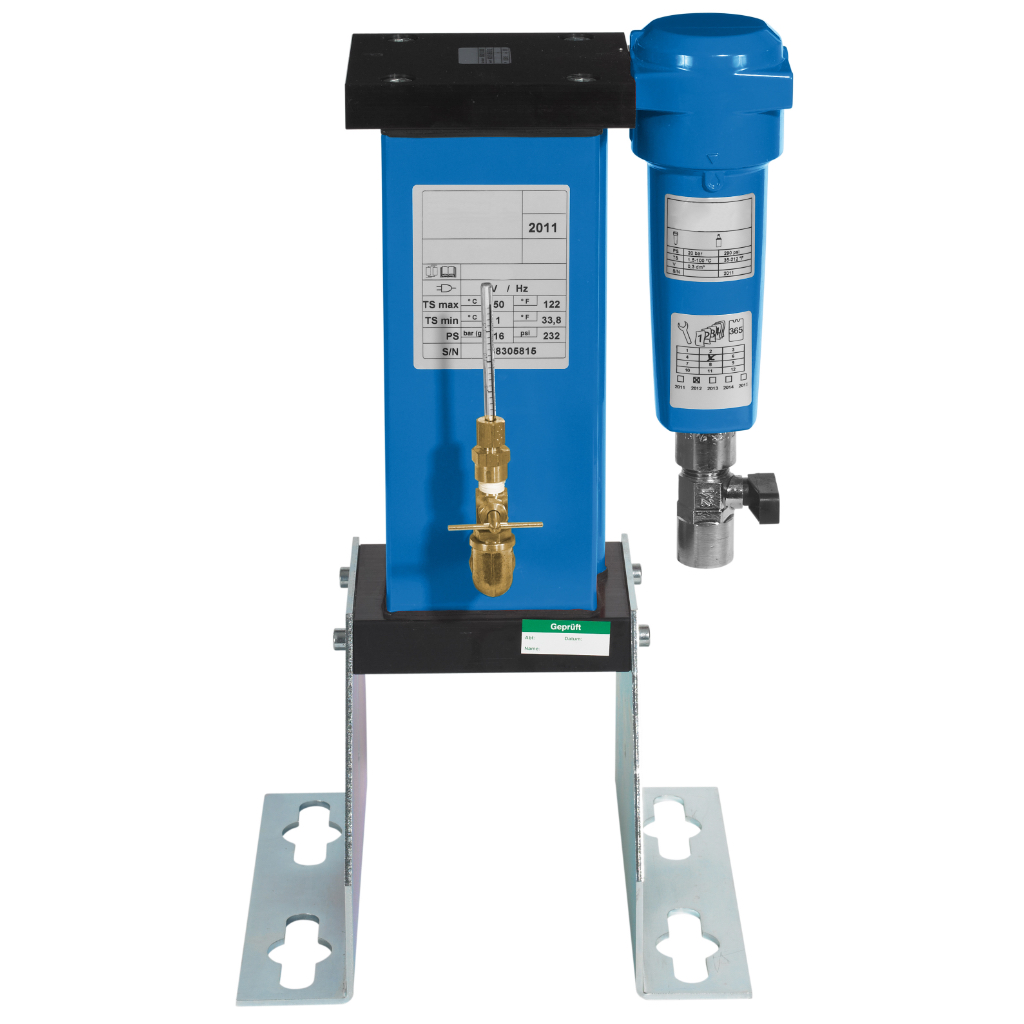

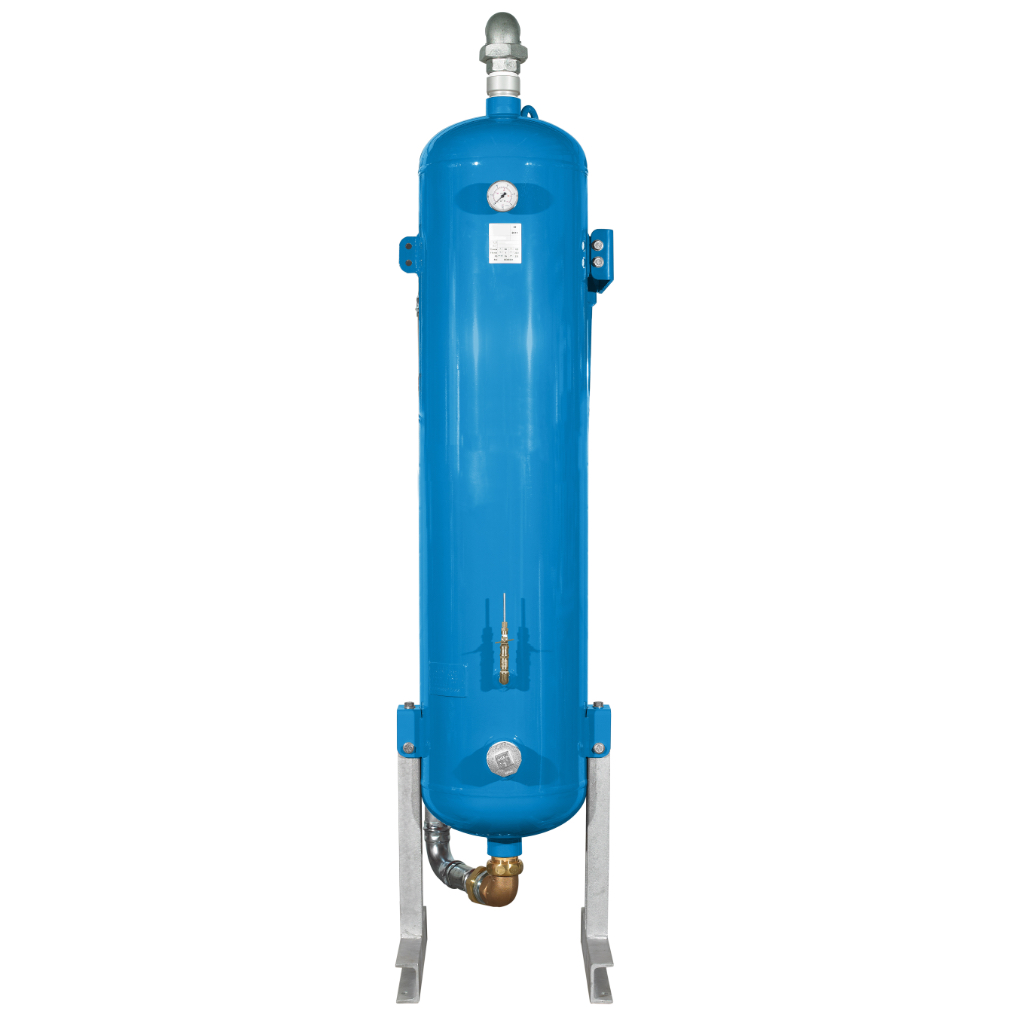

The DACZ series is equipped with an activated carbon adsorber to ensure a residual oil content of only 0,003 mg/m³ – for the highest quality compressed air.
| BOGE Type |
Capacity m3/hr |
Dimensions W x D x H (mm) |
Connection |
Weight Kg** |
|---|---|---|---|---|
| DAZ 4-2 | 8 | 326 x 216 x 400 | G ¼ | 11.5 |
| DAZ 5-2 | 15 | 326 x 216 x 575 | G ¼ | 15.5 |
| DAZ 6-2 | 25 | 326 x 216 x 825 | G ¼ | 25.0 |
| DAZ 8-2 | 35 | 326 x 216 x 1075 | G ¼ | 48.0 |
| DAZ 9-2 | 56 | 495 x 300 x 1203 | G ⅜ | 48.0 |
| DAZ 11-2 | 72 | 495 x 300 x 1428 | G ⅜ | 56.5 |
| DAZ 14-2 | 86 | 495 x 300 x 1628 | G ½ | 62.5 |
| DAZ 18-2 | 105 | 820 x 480 x 1420 | G 1 | 120.0 |
| DAZ 26-2 | 145 | 820 x 480 x 1750 | G 1 | 142.0 |
| DAZ 36-2 | 200 | 660 x 480 x 1730 | G 1 | 143.0 |
| DAZ 46-2 | 255 | 630 x 530 x 1760 | G 1½ | 173.0 |
| DAZ 61-2 | 350 | 790 x 585 x 1810 | G 1½ | 210.0 |
| DAZ 71-2 | 420 | 820 x 605 x 1820 | G 1½ | 249.0 |
| DAZ 101-2 | 620 | 860 x 635 x 1820 | G 2 | 277.0 |
| DAZ 126-2 | 750 | 950 x 640 x 2000 | G 2 | 408.0 |
| DAZ 161-2 | 940 | 1000 x 670 x 2020 | G 2½ | 510.0 |
| DAZ 201 | 1200 | 1060 x 840 x 2075 | DN 50 | 640.0 |
| DAZ 261 | 1550 | 1270 x 900 x 2120 | DN 65 | 830.0 |
| DAZ 341 | 2000 | 1350 x 990 x 2160 | DN 65 | 955.0 |
| DAZ 421 | 2500 | 1530 x 1040 x 2210 | DN 80 | 1075.0 |
| DAZ 501 | 3000 | 1600 x 1100 x 2255 | DN 80 | 1500.0 |
| DAZ 646 | 3800 | 1875 x 1200 x 2385 | DN 100 | 1990.0 |
| DAZ 811 | 4850 | 1925 x 1250 x 2660 | DN 100 | 2410.0 |
| DAZ 1021 | 6100 | 2160 x 1565 x 2820 | DN 125 | 2850.0 |
| BOGE Type |
Capacity m3/hr |
Dimensions W x D x H (mm) |
Connection |
Weight Kg** |
|---|---|---|---|---|
| DACZ 4-2 | 8 | 459 x 225 x 400 | G ¼ | 15.0 |
| DACZ 5-2 | 15 | 459 x 225 x 575 | G ¼ | 20.0 |
| DACZ 6-2 | 25 | 459 x 225 x 825 | G ¼ | 28.0 |
| DACZ 8-2 | 35 | 459 x 225 x 1075 | G ¼ | 35.0 |
| DACZ 9-2 | 56 | 685 x 300 x 1430 | G ½ | 68.0 |
| DACZ 11-2 | 72 | 685 x 300 x 1205 | G ½ | 81.0 |
| DACZ 14-2 | 86 | 685 x 300 x 1630 | G ¾ | 92.0 |
| DACZ 18-2 | 105 | 1140 x 467 x 1070 | G 1 | 161.0 |
| DACZ 26-2 | 145 | 1140 x 467 x 1320 | G 1 | 193.0 |
| DACZ 36-2 | 200 | 920 x 490 x 1730 | G 1 | 193.0 |
| DACZ 46-2 | 255 | 940 x 530 x 1760 | G 1½ | 234.0 |
| DACZ 61-2 | 350 | 1220 x 585 x 1810 | G 1½ | 283.0 |
| DACZ 71-2 | 420 | 1310 x 635 x 1870 | G 1½ | 334.0 |
| DACZ 101-2 | 620 | 1310 x 635 x 2000 | G 2 | 428.0 |
| DACZ 126-2 | 750 | 1450 x 635 x 2000 | G 2 | 428.0 |
| DACZ 161-2 | 940 | 1500 x 670 x 2020 | G 2½ | 698.0 |
