BOGE Air Filtration

BOGE Compressed Air Filtration

The premiere class of BOGE high-performance compressed air filters, with modified material composition and significantly improved surface texture, ensures the industry‘s lowest possible differential pressure during the entire service life of the filter element. Independent experts certify them - validated on the basis of ISO 12500-1: 2007 and ISO 8573-1: 2010 - a reliable separation of solids, oil and water aerosols as well as oil vapors. Never before compressed air filters have been so efficient, and the CO2 balance is also impressive.

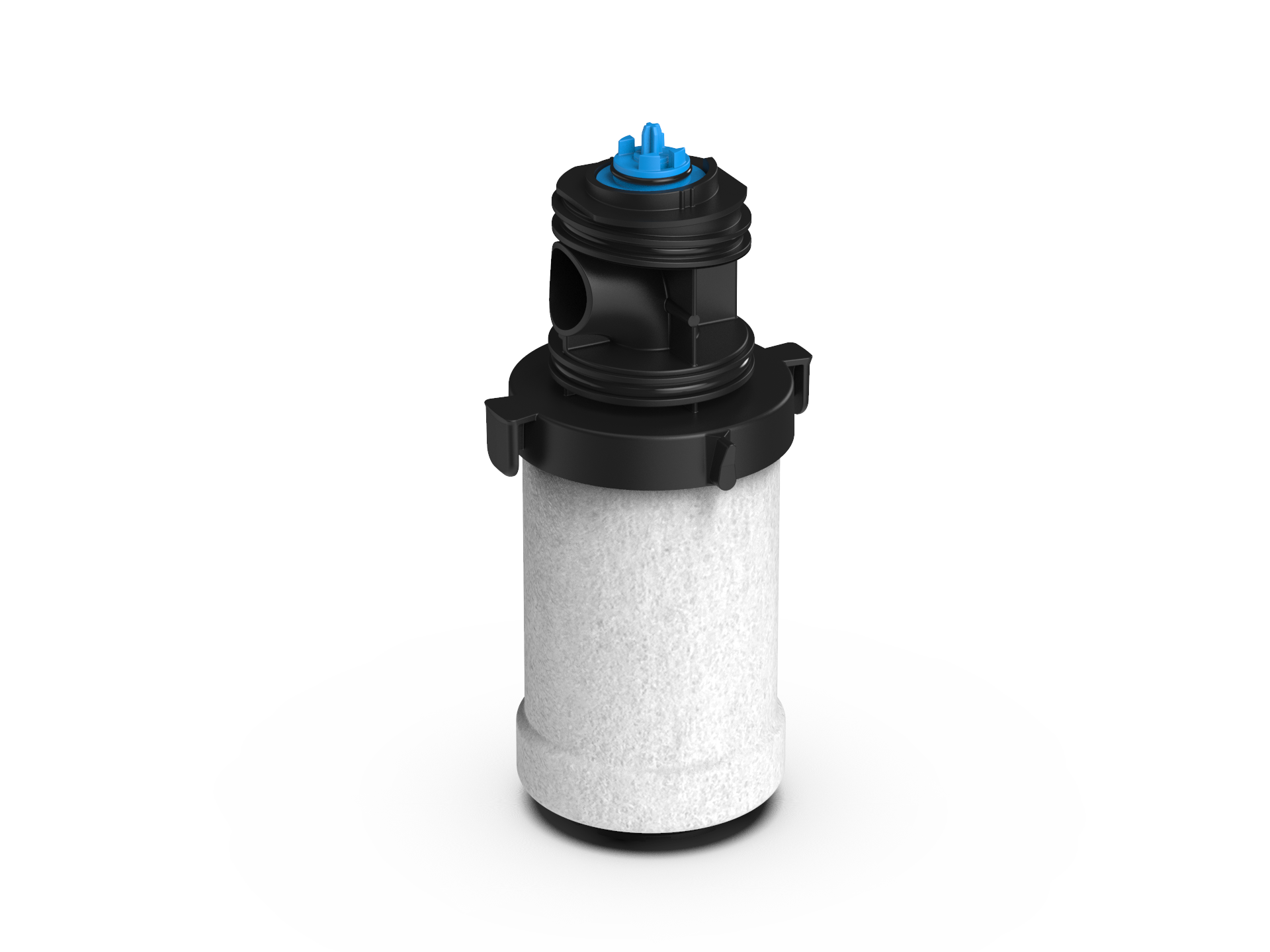

The coalescing filters have a highly efficient microfibre element fleece with an optimised external coating. BOGE provides a 12-month performance warranty which guarantees practically constant low differential pressure at consistently high separation performance over the entire lifetime of the filter element – while still offering cost savings. On top of that, BOGE offers a 10-year warranty on the filter housing.

Up to three filters can be combined without any cross-section constriction, using either a wall mounting or coupling kit - saving space as never before. Fitting a cyclone separator is just as easy. As all replacement parts are designed to be backward- compatible, they can be used both in current models and in previous models as a technical upgrade. It’s all about efficiency.

Filtration Specifications

brochure
Filter P: Pre-Filter M: Micro-Filter A: Activated Carbon Filter Flow Rate
m³/min
Flow Rate
m³/h
Connection
Size
Weight
kg
Dimensions
H x B x T mm
F 6-2 P / F 6-2 M / F 6-2 A 0,6 36 ¼" 0,6 180 x 76 x 65
F 9-2 P / F 9-2 M / F 9-2 A 0,6 36 ½" 0,6 180 x 76 x 65
F 12-2 P / F 12-2 M / F 12-2 A 1,2 72 ½" 1,2 238 x 89 x 84
F 18-2 P / F 18-2 M / F 18-2 A 1,8 108 ¾" 1,2 238 x 89 x 84
F 36-2 P / F 36-2 M / F 36-2 A 3,6 216 1" 2,2 277 x 120 x 155
F 65-2 P / F 65-2 M / F 65-2 A 6,6 396 1½" 2,7 367 x 120 x 115
F 95-2 P / F 95-2 M / F 95-2 A 9,6 576 1½" 7,0 440 x 164 x 157
F 130-2 P / F 130-2 M / F 130-2 A 13,2 792 2" 7,4 532 x 164 x 157
F 190-2 P / F 190-2 M / F 190-2 A 19,8 1188 2½" 7,2 532 x 164 x 157
F 260-2 P / F 260-2 M / F 190-2 A 25,8 1548 2½" 10,4 654 x 192 x 183
F 380-2 P / F 380-2 M / F 380-2 A 37,2 2232 3" 15,4 844 x 192 x 183
